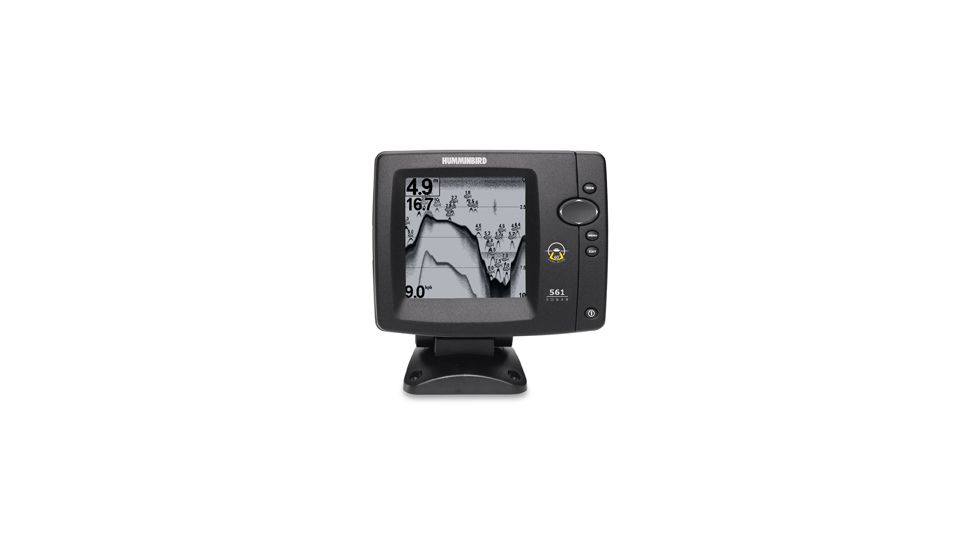

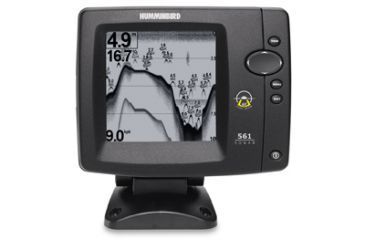

Name: Humminbird 561 DI Down Imaging Fishfinder
Brand: Humminbird
SKU: 4H-FH-4089801
Availability: Discontinued

Humminbird 500 561 DI Down Imaging and DualBeam Fishfinder, 5.0" diagonal Screen 4089801

Product No Longer Available

Unfortunately Humminbird 561 DI Down Imaging Fishfinder is not listed by RadarGuns.You can also explore other items in the Fish Finders yourself to try and find the perfect replacement for you!

Compare

Product Info for Humminbird 561 DI Down Imaging Fishfinder

As a seller for Humminbird, we're also at the moment promoting Humminbird 561 DI Down Imaging Fishfinder at discounted prices. We primarily carry top quality Fish Finders here so whether you're a sportsman, civilian, or perhaps in the military, you can be certain that we offer the right gear. If you want to find a wider assortment, you can look at our primary Fish Finders page. In case you have any inquiries, you will find there's a very knowledgeable staff here. Our customer support are available by phone, chat and email. Therefore start browsing now and look for the right Fish Finders your needs.

Specifications for Humminbird 561 DI Fishfinder w/ Down Imaging:

Display Size:	5.0" diagonal
Display Pixel Matrix:	320V x 320H
Display Type:	FSTN LCD
Display Colors/Grayscale:	12 Level Grayscale
Down Imaging:
Sonar Coverage:
455 kHz / 75° @ -10db:
800 kHz / 45° @ -10db:
Dual Beam PLUS:
Sonar Coverage:
200 kHz / 28° @ -10db:
455 kHz / 16° @ -10db:
Target Separation:	2.5 inches
Power Output (RMS):	500 Watts (RMS)
Power Output (Peak to Peak):	4000 Watts (Peak-to-Peak)
Temperature:	Built in transducer
Speed:	Capable
Backlight:	Yes
Waterproof:	Yes
Mount:	Quick Disconnect
Unit Size:	7.25" H x 7" W x 4" D
Transducer - Standard:	XNT-9-DI-T
Transducer Mounting:	Inside Hull or Transom
Power Input:	10-20 VDC
Power Draw:	Lights off
