Product No Longer Available
Unfortunately Humminbird 688ci HD DI Fish Finder-Sonar Detector Combo is not listed by RadarGuns.You can also explore other items in the Fish Finders yourself to try and find the perfect replacement for you!

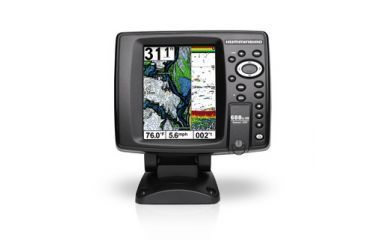

Product Info for Humminbird 688ci HD DI Fish Finder-Sonar Detector Combo
As a seller for Humminbird, we are at the moment selling Humminbird 688ci HD DI Fish Finder-Sonar Detector Combo at discount prices. We mainly have top quality Fish Finders here so regardless if you're a hunter, civilian, or perhaps in the armed forces, you can be assured that we carry the right gear. If you would like find a larger selection, you can look at our primary Fish Finders page. In case you have any questions, you will find there's a very well-informed staff here. Our customer service are on hand by phone, chat and email. So start shopping now and find the right Fish Finders for you.
Specifications for Humminbird 688ci HD DI Combo:
| Display Size: | 5.0" diagonal | |
| Display Pixel Matrix: | 640V x 480H | |
| Display Type: | Color TFT | |
| Display Colors/Grayscale: | 256 Colors | |
| Down Imaging® | ||
|---|---|---|
| Sonar Coverage: | 455 kHz / 75° @ -10db; 800 kHz / 45° @ -10db | |
| DualBeam Plus™ | ||
| Sonar Coverage: | 200 kHz / 25° @ -10db; 455 kHz / 16° @ -10db | |
| Sonar Optional: | none | |
| Target Separation: | 2.5 inches | |
| Power Output (RMS): | 500 Watts (RMS) | |
| Power Output (Peak to Peak): | 4000 Watts (Peak-to-Peak) | |
| Temperature: | Included | |
| Speed: | GPS Speed Included | |
| Backlight: | Yes | |
| Waterproof: | Yes | |
| Mount: | Quick Disconnect | |
| Unit Size: | 6.9"W x 7.5"H x 4.5"D | |
| Mount: | Optional In-dash | |
| Unit Size: | 6.9"W x 5.4"H x 1.25"D | |
| Transducer - Standard: | XNT-9-DI-T | |
| Transducer Mounting: | Transom | |
| Power Input: | 10-20 VDC | |
| Power Draw: | 615mA | |
Features of Humminbird 688ci Fish Finder/Sonar Detector:
- ADVANCED SONAR FEATURES
- Down Imaging Sonar
- Switchfire Sonar
- Screen Snap Shot to Memory Card
- Sonar Recording
- Split Screen Zoom
- Split Screen Bottom Lock
- Wide Narrow Cone Split Screen
- Instant Image Update
- Freeze Frame with the ability to Mark Structure on Sonar
- Selective Fish ID+
- Real Time Sonar RTS Window
- Sonar Echo Enhancement
- TrueArch Technology
- USER-FRIENDLY TECHNOLOGY
- 3D Chart View
- Large Digits View
- Custom View Selections
- Custom Digital Readout Selection
- Selectable Display Colors
- Selectable Background Colors
- View Preset Keys
- Temperature Alarm
- Triplog
- X-Press™ Menu System
Package Contents:
- Humminbird 688ci HD DI Fish Finder-Sonar Detector Combo
