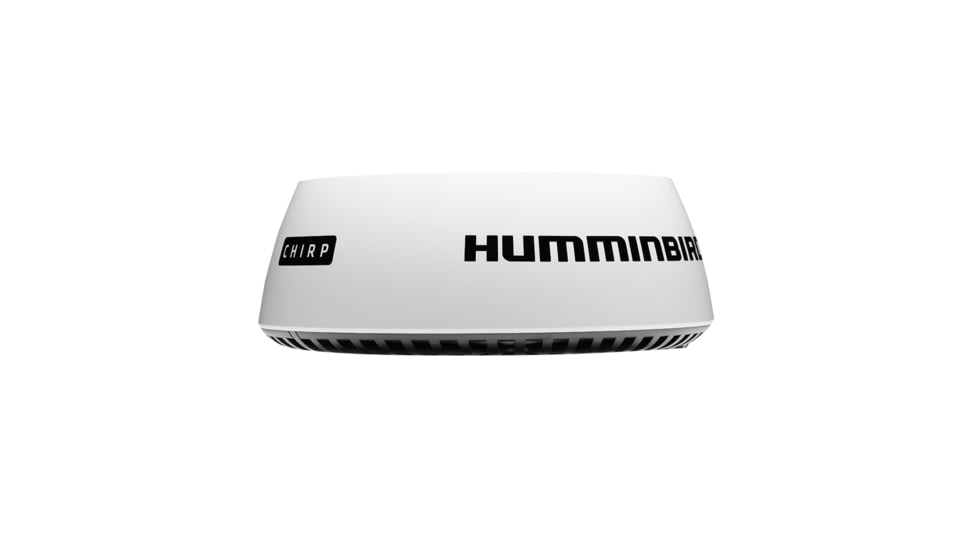

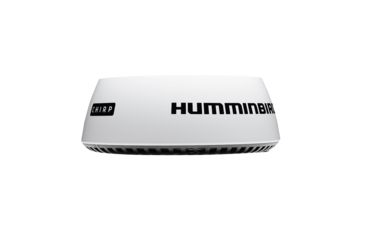

Humminbird HB2124 CHIRP Radar w/ Free S&H

As a dealer for Humminbird, we are at the moment selling Humminbird HB2124 CHIRP Radar at the best prices. We primarily offer good quality Fish Finders here so whether or not you're a sportsman, civilian, or in the police, you can be assured that we offer the right gear. If you would like choose a wider selection, you can search our main Fish Finders page. If you've got any inquiries, you will find there's a very well-informed staff here. Our customer service are on hand by telephone, chat and email. And so begin browsing now and find the right Fish Finders your needs.

Specifications for Humminbird HB2124 CHIRP Radar:

Features of Humminbird HB2124 CHIRP Radar

• Antenna Dimension - 21" Enclosed Dome
• Antenna Type - Patch Array
• Peak Power Output - 20W
• Transmit Frequency - 9354 to 9446 MHz
• Beam width (nominal) - 4.9 Horizontal and 20 Vertical
• Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts Maximum - 31.2 Volts)
• Networking - Ethernet
• Maximum Range Scale - from 1/16 to 24 nautical miles
• Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W
• Duplexer - Circulator
• Pulse Widths @ 3 dB - 40 ns to 14.7s
• CHIRP Lengths - 400 ns to 20s
• CHIRP Bandwidth - Up to 32 MHz
• IF Bandwidth - 26 MHz
• Noise - Less than 4 dB
• Polarization - Horizontal
• Waterproofing - IPX6
• Weight - 12.3 lbs (5.6 kg)
• Compatibility Networking HELIX models and all ONIX models

Package Contents:

• Humminbird HB2124 CHIRP Radar
