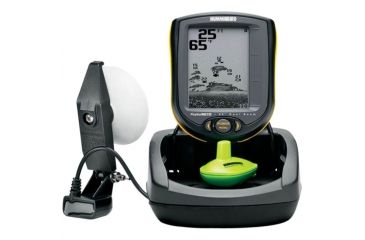

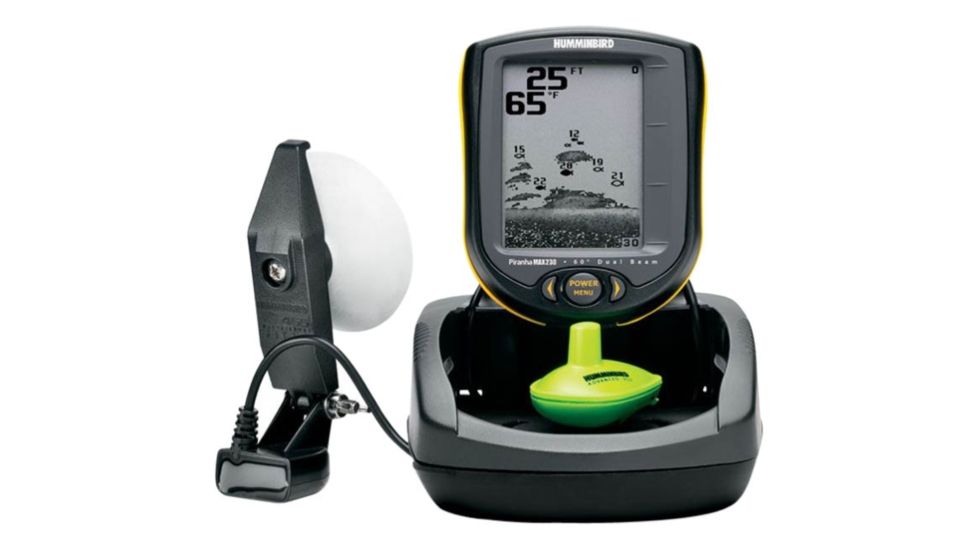

Humminbird PiranhaMAX 230 Portable
Tap Tap to Zoom
Product Discontinued by Manufacturer
Humminbird PiranhaMAX 230 Portable has been discontinued by Humminbird and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Fish Finders yourself to try and find the perfect replacement for you!
Product Info for Humminbird PiranhaMAX 230 Portable
Being a seller for Humminbird, we are at the moment selling Humminbird PiranhaMAX 230 Portable at discount prices. We only offer high quality Fish Finders here so whether you're a sportsman, civilian, or perhaps in the police, you can be certain that we stock the right gear. If you wish to choose a larger collection, you can look at our primary Fish Finders page. When you've got any questions, you will find there's a very knowledgeable staff here. Our customer support are available by phone, chat and email. So start shopping now and look for the right Fish Finders for you.
Specifications for Humminbird PiranhaMAX 230 Portable Fishfinder:
| Display Size: | 4.0" diagonal |
| Display Pixel Matrix: | 240V x 160H |
| Display Type: | FSTN LCD |
| Display Colors/Grayscale: | 8 Level Grayscale |
| Dual Beam Sonar Coverage: | 200 kHz / 20° @ -10db; 83 kHz / 60° @ -10db |
| SmartCast Sonar Coverage: | 125 kHz / 90° @ -10db |
| Wireless Range: | 100 ft |
| Target Separation: | 2.5 inches |
| Power Output (RMS): | 100 Watts (RMS) |
| Power Output (Peak to Peak): | 800 Watts (Peak-to-Peak) |
| Temperature: | Included |
| Backlight: | Yes |
| Waterproof: | Yes |
| Mount: | Portable Clamp |
| Unit Size: | n/a |
| Transducer - Standard: | XPT-9-20-T |
| Transducer Mounting: | Suction Cup |
| Power Input: | 10-20 VDC |
Features of Humminbird PiranhaMAX 230 Portable:
- Temperature Sensor
- Water Proof
Package Contents:
- Humminbird PiranhaMAX 230 Portable, 4" FSTN LCD, 800 W Peak, 100 W RMS, 83 kHz,200 kHz 4068801
