Opti-Logic RS100 Industrial Laser Rangefinder w/ RS232 Serial Data Interface Ports
Tap Tap to Zoom
Product No Longer Available
Unfortunately Opti-Logic RS100 Industrial Laser Rangefinder w/ RS232 Serial Data Interface Ports is not listed by RadarGuns.You can also explore other items in the Rangefinders yourself to try and find the perfect replacement for you!
Product Info for Opti-Logic RS100 Industrial Laser Rangefinder w/ RS232 Serial Data Interface Ports
As a dealer for Opti-Logic, we are currently selling Opti-Logic RS100 Industrial Laser Rangefinder w/ RS232 Serial Data Interface Ports at low prices. We primarily carry good quality Rangefinders here so no matter if you're a sportsman, civilian, or in the armed forces, you can be certain we stock the right gear. If you want to find a larger collection, you can consider our primary Rangefinders page. When you've got any inquiries, we've got a very well-informed staff here. Our customer support are on hand by phone, chat and e-mail. Therefore begin shopping now and find the right Rangefinders your needs.
Specifications for Opti-Logic RS100 Industrial Laser Range-Finder:
| RS100 Range: | 100 Yards (Minimum 4 Yards) | |
| Communications: |
|
|
| Data Raw Counts: | ~200Hz | |
| Data Calibrated Range: | ~10Hz | |
| Data Rate: | ~200Hz raw counts for un-calibrated operation;~ 10Hz for calibrated operation | |
| Calibrated Range Units: | Feet, Meters, Yards | |
| Laser: | Class I (eye-safe), 905nm +/- 10nm | |
| Power: | 7-9VDC conditioned required, Current draw @ full power (~ 1.8W) | |
| Laser Wavelength: | RS100 905nm +/- 10nm | |
| Laser Divergence: | Vertical Axis -- 3.5mrad half-angle divergence; Horizontal Axis -- 1mrad half-angle divergence; (Approximate Beam "footprint" at 100m is 35cm x 5cm) | |
| Accuracy: | +/- 1m on 1x1m2 diffuse target with 50% reflectivity | |
| Resolution: | 0.2m | |
| Dimensions: | 32x78x84mm | |
| Weight: | < 8oz | |

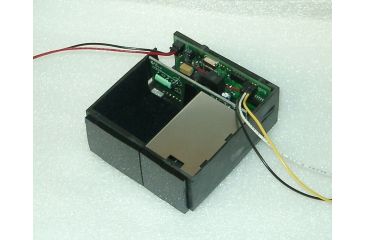

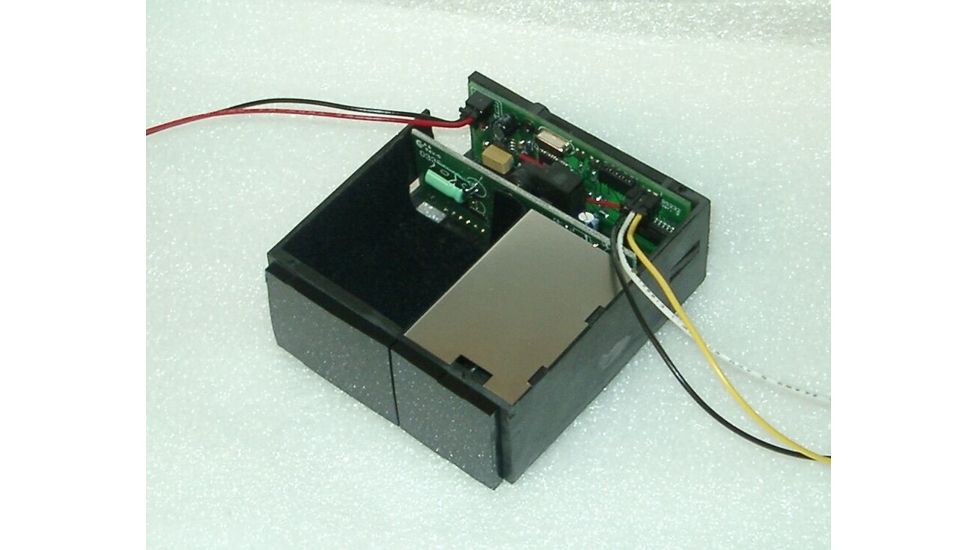

| Case: | Supplied as OEM modules consisting of open chassis containing optics and circuit boards. Custom Housings can be designed and built on request. | |
| Note: | Custom designs and modifications are available at additional cost, please contact manufacturer. | |
Features of Opti Logic Industrial Laser Range Finder RS100:
- Compact
- Light weight
Package Contents:
- Opti-Logic RS100 Industrial Laser Range Finder
